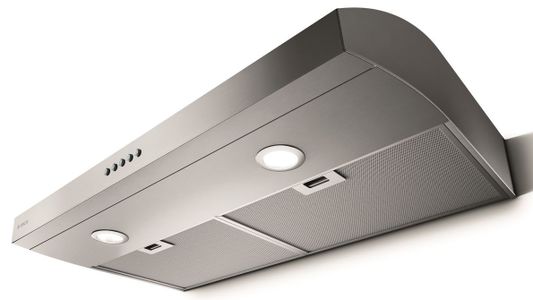

Elica Comfort Series Allasio 30" Stainless Steel Under Cabinet Range Hood

Elica

Model #:

EAL330S1

At a Glance

Product Dimensions 4.75"h x 30"w x 20"d

Allasio is equipped qith a 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.Read More

$569.00

What We Offer

Get to know this product.

Product Overview

Product Overview

Allasio is equipped qith a 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 30” or 36” widths, Allasio is designed for standard ducted installation, and can be installed as a recirculating system, using the Recirculating Kit.

The slim Allasio with 4 3/4” height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colours will compliment other appliances and most cabinetry.

Useful Documents
Product Dimensions
Installation Instructions
Dimensional Drawing
Specification Sheet
Specifications

General Specs

ColorStainless Steel
Color-Finish NameStainless Steel
Color/Finish NameStainless Steel
Range Hood TypeUnder Cabinet
Ventilation TypeConvertible (Both)
Vent LocationCustom
Grease Filter TypeAluminum Mesh
Duct Size (in.)6
Bulb TypeLED
Sones Rating1.5 - 5.9
Noise Level (Sones)Standard - (High)
Maximum CFM300
Fan Speed Options3
Appliance Fit Width (in.)30
Appliance Fit Width (cm.)76
Width (in.)30
Width (cm)76.2
Height (in.)4.75
Height (cm.)12.07
Depth (in.)20
Depth (cm.)50.8
ENERGY STAR CertifiedNo
CollectionAllasio
Manufacturer Warranty2 Year Parts & Labour
Voltage120
Amp2,43
Frequency60

Additional Attributes:

Specifications:

Speed 1120 CFM
Speed 2210 CFM
Speed 3300 CFM
ControlsBacklit Electronic Push Buttons
Illumination2 LED Lights
Filter TypeDishwasher-Safe, Anodized Aluminum Mesh Filter
Duct Transition6” Round with Back Draft Damper (top only)
Installation TypeDucted (Recirculating Kit sold separately)

Consumable Parts:

Grease Filter (1)GF04BA
Carbon Filter (1)TM01FA
