General Specs |
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Color/Finish Name | Stainless Steel |

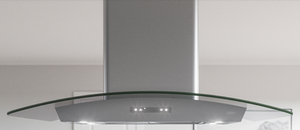

| Range Hood Type | Island |
| Ventilation Type | Ducted |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 8 |
| Bulb Type | LED |
| Sones Rating | 0.8 - 6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 700 |
| Range Hood Features | Wi-Fi Capable, App Capable |
| Smart Compatible | Yes |
| Fan Speed Options | 6 |
| Appliance Fit Width (in.) | 36 |
| Appliance Fit Width (cm.) | 89 |
| Width (in.) | 35.19 |
| Width (cm) | 89.38 |
| Height (in.) | 14.13 |
| Height (cm.) | 35.89 |
| Depth (in.) | 25.96 |
| Depth (cm.) | 65.94 |
| Height Above Cooktop | 24 - 34 |
| Height Above Cooktop Centimeter | 66.04 - 86.36 |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Collection | Milano |
| Manufacturer Warranty | 3 Years Parts / 1 Year Labor |
| Voltage | 120 |
| Amp | 5 |
| Frequency | 60 |
More Attributes: |
Blower Specifications: |
| Blower CFM (Min. - Max.) | 200 - 700 |
| ACT 590 CFM (Min. - Max.) | 200 - 590 |
| ACT 390 CFM (Min. - Max.) | 200 - 390 |
| ACT 290 CFM (Min. - Max.) | 200 - 290 |
Features: |
| Zephyr Connect App Compatible | Yes |
| Alexa & Google Home Compatible | Yes |
| ACT™ Technology | 590, 390, 290 |
| Controls | Proximity Touch |
| Auto Delay-Off | Yes |
| CleanAir Function | Yes |
| Lighting | LumiLight LED, 6W x4 |
| Tri-Level Lighting | Yes |
| Filters | Aluminum Mesh x2 |
| Recirculating Option | Yes |
| Quick-Lock Installation | Yes |
| Magnetic Duct Covers | Yes |
| Extension Duct Cover Option | Yes, Up to 12’ Ceiling |
| ADA Compliant | Yes, with Zephyr Connect or Remote |
Duct Specifications: |
| Vertical Internal Blower | 8” Round |
| Horizontal Internal Blower | NA |
Optional Accessories: |
| Wireless Remote Control | 14000005 |
| Recirculating Kit | ZRC-00ML |
| Extension Duct Cover | Z1C-03ML |
| Make-Up Air Kit | MUA008A |
