Product Dimensions 16.56"h x 35.44"w x 27.5"d

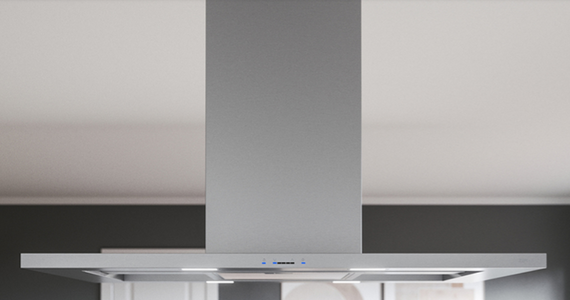

Resembling a floating island made of steel and glass, Modena houses LumiLight LED lighting and 5-speed ICON Touch® controls within its one-inch stainless steel canopy. Nestled discreetly between the chimney and its outer ring, Modena’s glass canopy adds a sense of lightness and augments the range hood’s symmetry and low-profile design.Read More
Freight, not included.
LumiLight LED Lighting
Dual-Level Lighting
Airflow Control Technology™ (ACT™)
Aluminum Mesh Filters
Low-Profile Body
ICON Touch® Controls
Quick-Lock Installation System
*Range hood only, all other items sold separately.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Island |
| Ventilation Type | Convertible (Both) |
| Vent Location | Top |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 8 |
| Bulb Type | LED |
| Sones Rating | 1 - 6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 600 |
| Range Hood Features | Light |
| Fan Speed Options | 5 |
| Appliance Fit Width (in.) | 36 |
| Appliance Fit Width (cm.) | 90 |
| Width (in.) | 35.44 |
| Width (cm) | 90.02 |
| Height (in.) | 16.56 |
| Height (cm.) | 42.06 |
| Depth (in.) | 27.5 |
| Depth (cm.) | 69.85 |
| ENERGY STAR Certified | No |
| Collection | Moderna |
| Manufacturer Warranty | 3 Years Parts / 1 Year Labor |
| Voltage | 120 |
| Amp | 4 |
| Frequency | 60 |
More Attributes: | |
Blower Performance: | |
| Blower CFM (Min. - Max.) | 200 - 600 |
| ACT 390 CFM (Min. - Max.) | 200 - 390 |
| ACT 290 CFM (Min. - Max.) | 200 - 290 |
Features: | |
| ACT™ Technology | Yes |
| Controls | ICON Touch® |
| Auto Delay-Off | Yes |
| Lighting | LumiLight LED, 6W x4 |
| Dual-Level Lighting | Yes |
| Filters | Aluminum Mesh x1 |
| Recirculating Option | Yes |
| Quick-Lock Installation | Yes |
| Magnetic Duct Covers | Yes |
| Extension Duct Cover Option | Yes, Up to 12' Ceiling |
Duct Specifications: | |
| Vertical Internal Blower | 8” Round |
Optional Accessories: | |
| Recirculating Kit | ZRC-00MD |
| Extension Duct Cover | Z1C-00MD |
| Make-Up Air Kit | MUA006A |
