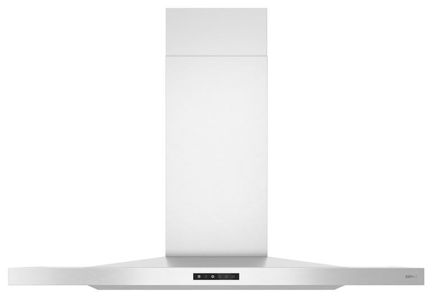

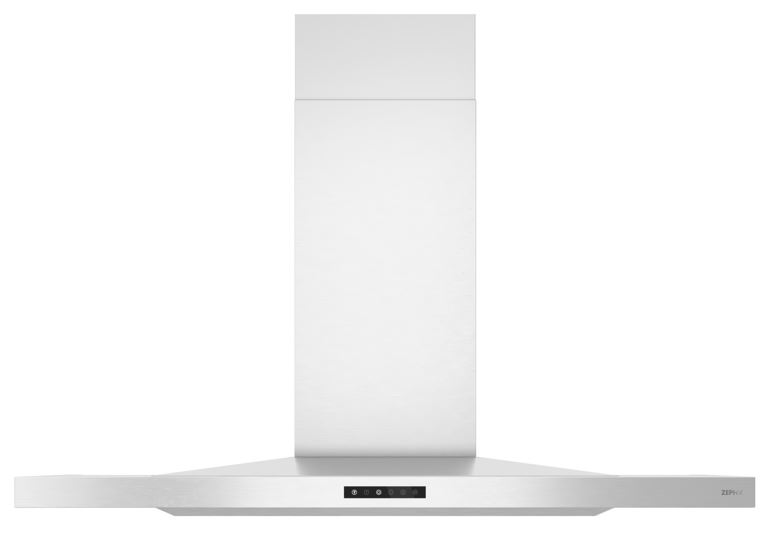

Zephyr Designer Collection Layers 42" Stainless Steel Wall Mounted Range Hood

Zephyr

Model #:

DLA-E42ASSX

Model #: DLA-E42ASSX
828784
Zephyr
$3,649.00

At a Glance

Product Dimensions 27"h x 41.94"w x 22"d

Zephyrs’ new all stainless-steel Layer wall hood with tri-level lighting features Capacitive Touch controls, Auto delay-off and Clean Air Function that automatically turns the range hood on Speed 1 every four hours for 10 minutes to circulate the air. Optional internal and external blower are sold separately.Read More

$3,649.00
$4,049.00Save $400.00

What We Offer

Protect Your Purchase

View Options

None Selected

Freight, not included.

Get to know this product.

Product Overview

Product Overview

Multiple blower options

Invisible touch controls

Tri-level lighting

LED lighting

CleanAir function

Optional wireless remote control

Optional duct cover extension kit

*Range hood only; blower sold separately.

Useful Documents
Specification Sheet
User Manual - Bilingual
Blower Specifications
Recirculating Kit
Duct Cover Extension Manual
Specifications

General Specs

Width (in.)41.94
Height (in.)27
Duct Size (in.)6" Round, 8" Round
Depth (in.)22
CollectionLayers
ColorStainless Steel
Shipping Depth (cm)115.06
Shipping Height (cm)64.01
Shipping Width (cm)56.9
Weight Kilogram45.36
Appliance Fit Width (cm.)107
Manufacturer Warranty1 Year Labor / 2 Year Parts
Color Finish NameStainless Steel
Range Hood TypeWall Mounted
ADA CompliantYes
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)42
Product Weight (lbs.)90
Smart CompatibleNo
Bulb TypeLED
Grease Filter TypeAluminum Mesh
Sones Rating1.4 - 6
Fan Speed Options3
Height Above Cooktop24 - 36
Ventilation DirectionVertical
Shipping Depth (in.)45.3
Shipping Width (in.)22.4
Shipping Height (in.)25.2
Width (cm)106.52
Height (cm.)68.58
Depth (cm.)55.88
Product Weight (kg)40.82
Height Above Cooktop Centimeter60.96 - 91.44
Voltage120
Amp6.63
Frequency60
Range Hood FeaturesAutomatic Shut Off, Ductless Capable
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Compatible Blower Models

Internal Blower (CBI-290C)200-290 CFM, 1.4-3 sones
Internal Blower (CBI-600A)240-600 CFM, 1.8-6 sones
In-Line Blower (PBN-1000A)500-1,000 CFM
External Blower (CBE-1000)500-1,000 CFM
